It may not seem important to reprogram your Craftsman garage door opener, but it is very important for keeping your home safe. Access codes can be stolen over time, whether it’s because you moved or got a new key, or just as a safety measure. Luckily, the process is easy and doesn’t require any technical know-how as long as you carefully follow the steps. Everything will work perfectly if you carefully follow the steps in this toto. Your garage door system will then work smoothly and safely. There are also video tutorials in this article that walk you through each step, which makes the process even easier to understand.

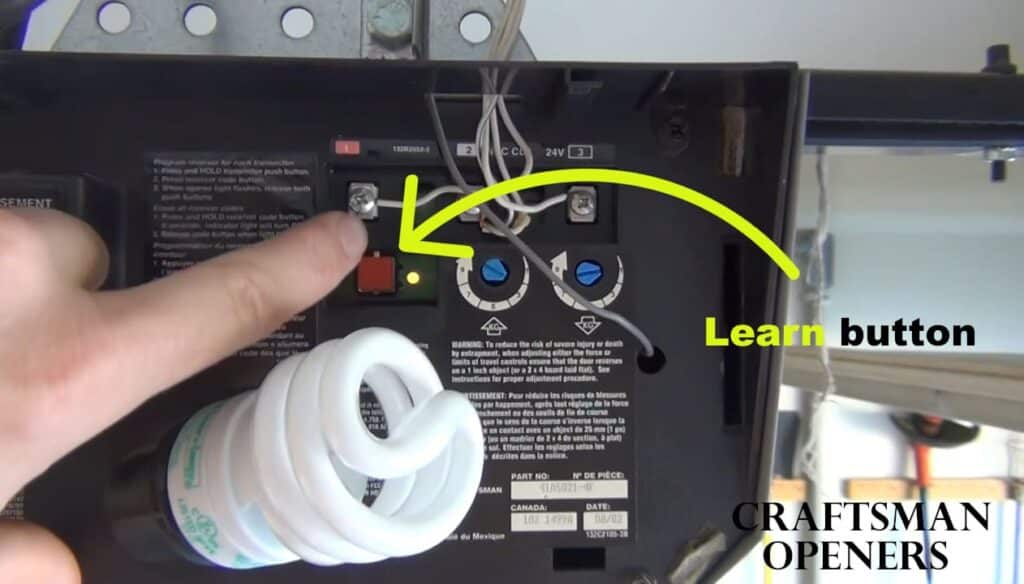

1. Locate the Learn Button Craftsman Garage Door
First things first, gather what you need. Usually, just your remote and a ladder to reach the Learn button on the opener itself. Keep the remote close by and make sure your opener is plugged in.
Here’s the rundown on getting your opener working quickly. I’ll go over how to locate the Learn button, clear any existing codes, and get that remote set up.
Most Craftsman openers place this on the back or side of the motor unit hanging from your garage ceiling. Once you spot it, you’re halfway there. The Learn button will be a small button, often colored yellow, red, green, or purple. Find this button and press it gently for just a second.
Pro Tip: Try not to press too hard on the Learn button. A gentle push is all it takes.
2. Clearing Old Codes
Now, this part’s essential if you’ve ever had a different remote paired with the door. To clear the old codes, hold down the Learn button for about 10 seconds. You’ll see a little LED light nearby that’ll turn off once the codes are cleared. This means your garage door opener is now ready for fresh programming. Make sure there’s nothing blocking the door track at this point, just to keep everything safe and smooth.

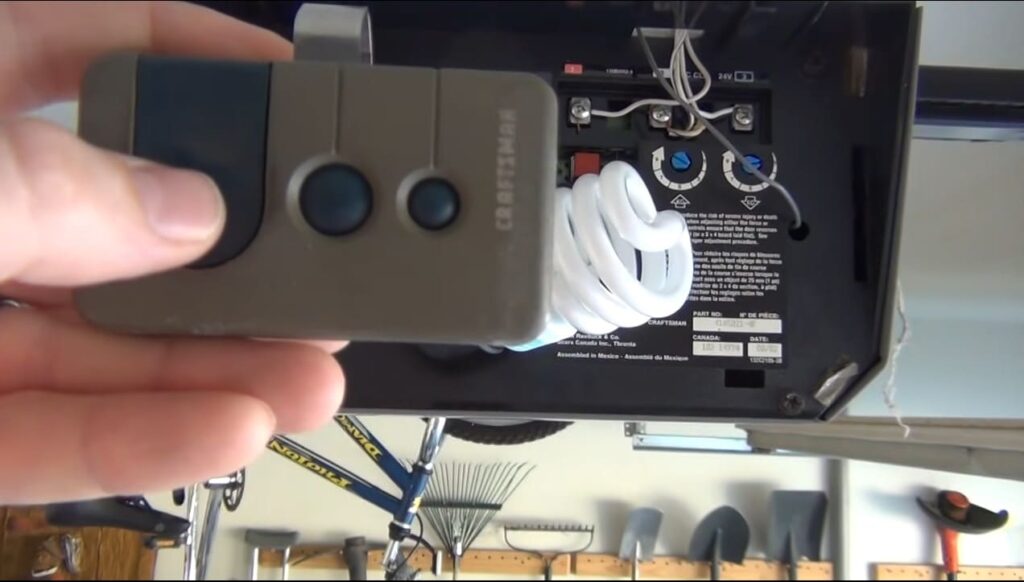

3. ReprogramYour Remote Craftsman Garage Door Opener
With the codes cleared, it’s time to set up your new remote control. Grab your remote and get ready to sync it up with the opener:
- Go back to that Learn button and press it again, this time for just a brief second (30s). The LED light should start blinking, signaling that the opener is in programming mode.
- While the LED blinks, press and release the button on your remote that you want to use to operate the door. You may need to hold it down for a second or two for it to register with the opener.
- After a few moments, the LED on the opener should stop blinking and stay solid. This means your remote has successfully paired with the opener.
- Test the setup. Stand a safe distance back and press the button on your remote to check that the door opens and closes as expected. If everything’s working, you’re done!
Explanatory Video : How To Program A Craftsman Remote
Video Tutorial : How to Program a Craftsman Garage Door Keypad
You may need to take off the light cover on the motor housing first. Next, find and press the Learn Button once.
Once the LED lights up, enter a four-digit PIN on the keypad and press the Enter button within 30 seconds. The garage door opener will flash once.
Next, press the Enter button on the keypad again, and the door should respond. Moving forward, simply input your PIN and press Enter to open or close the garage door from the outside.
Lastly, these steps are also applicable to Chamberlain, LiftMaster, and Sears garage door openers.
Troubleshooting Tips for Craftsman Garage Door Opener Programming
Sometimes, things don’t work on the first try. Here are a few troubleshooting tricks if you hit a roadblock:
- LED Not Blinking: If the LED doesn’t blink after you press the Learn button, try unplugging the opener for a minute, then plug it back in and try again.
- Remote Doesn’t Sync: If your remote isn’t syncing, double-check that the batteries are fresh. Low power can affect signal strength.
- Door Doesn’t Move: If the door doesn’t respond, ensure the sensors aren’t blocked by anything, like leaves or boxes near the door track.
- Keep It Close: Stand close to the opener during programming. Interference from walls or distance can mess with the signal.
What color is the learn button on craftsman garage door opener ?
Essential for figuring compatible remotes and keypads, the color of the Learn button on your Craftsman garage door opener reveals the particular technology and frequency it employs. The learn button colors and the related technologies are broken out here:
- Yellow: Utilizes Security+ 2.0 technology, operating on 310, 315, or 390 MHz frequencies. This system has been in use since 2011.
- Purple: Employs Security+ 315 MHz technology, used in models manufactured since 2005.
- Red or Orange: Indicates Security+ 390 MHz Rolling Code technology, found in units produced between 1997 and 2005.
- Green: Associated with Billion Code technology, operating on a 390 MHz frequency, common in models from 1993 to 1997.
Why Craftsman Garage Door Opener Programming is Worth Learning
Learning how to program your own Craftsman garage door opener is empowering. You don’t need to rely on anyone else or spend extra money on service calls. Plus, if you’re someone who likes to be in control of your own home maintenance, this is an easy win.
Having the skill to reset or program the opener also helps if you decide to give an extra remote to a family member or change one out. You can add, clear, and reprogram remotes at your leisure without the hassle.
Tips for Maintaining Your Craftsman Garage Door Opener
Now that you’ve got your Craftsman garage door opener set up, let’s keep it working smoothly. These small maintenance tasks can help prolong the life of your opener and avoid any future headaches:
- Lubricate the moving parts: A bit of lubricant on the rollers, springs, and hinges keeps the door from sticking or jamming. Do this every few months.
- Check the Sensors: Dust and debris can cover the sensors, causing them to think there’s an obstacle. A quick wipe with a dry cloth keeps them clear.
- Test the Balance: Every now and then, pull the release cord on the door and manually lift it halfway. If it stays, it’s balanced. If it moves up or down, it might need adjustment.
- Inspect the Remote Batteries: Fresh batteries ensure that you’re not left stranded outside with a dead remote. Replacing them at least once a year is a good habit.
Frequently Asked Questions
How often should I reprogram my Craftsman garage door opener?
You don’t need to reprogram it often unless you replace your remote, reset the opener, or change the motor unit. Otherwise, once it’s set up, it should stay good to go.
My garage door opens by itself. What should I do?
A garage door opening on its own is unsettling. Reprogram the opener to clear any old codes, and make sure your remote is safely stored and not accidentally getting pressed. If it still opens randomly, consider calling a technician to inspect for issues with the wiring or motor.
How can I reset my Craftsman garage door opener without the remote?
If you’ve lost the remote, you can still reset the opener by accessing the Learn button on the motor unit. This clears the memory of previous remotes, and you can then sync up a new remote whenever you’re ready.
Wrapping Up: Crafting Confidence With Your Craftsman
Knowing the basics of Craftsman garage door opener programming gives you a little extra control over your daily life. Not only do you save time and avoid the need for outside help, but it also gives you peace of mind knowing you can handle things yourself. The simplicity of the Learn button makes it easy to add new remotes, clear old ones, and get everything running in just minutes.
With these steps, your Craftsman garage door opener is now programmed and ready to go. Whether it’s for added security or simply knowing you’ve got everything working properly, a quick programming session is all it takes to keep your garage door opener at its best.
